TCP1200 Series Thermal Interface Pad Conductive Silicone Gap Pad

FOB Reference Price:Get Latest Price
  • 100 - 999 Pieces
    US $2.60
  • 1000 - 4999 Pieces
    US $2.20
  • 5000 - 9999 Pieces
    US $2.00
  • >=10000 Pieces
    US $1.80
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SinoGuide
Model Number:
TCP1200
Type:
Thermal Pad
Material:
Silicone base, Polyimide
Application:
High Voltage
Rated Voltage:
6Kv/ac
Tensile Strength:
6.8 KN/M
Thermal Conductivity:
12W/m.k
Hardness:
60 Shore C
Color:
Ash Grey
Thickness:
0.5 ~5.0 mm
Continuous Use Temp:
-60 to 200 ℃
Size:
Customized
Density:
3.4g/cc
Flame Rating:
UL 94 V 0
Usage:
LED,CPU,Laptop,Electronics etc
Dielectric Breakdown Voltage:
≥200 Vac/mil
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
SinoGuide Standard Package or Customized
Port
Shenzhen, HongKong

                           Silicone Thermal Conductive Gap Filler Pad TCP750 Series



 Features:



 12.0 W/mk ultra high thermal conductivity
 Excellent Thermal Performance at Low Pressure
 Naturally tacky for easy application



Applications:



 Between heat-generation Component and and heatsink.
 CD ROM / DVD ROM

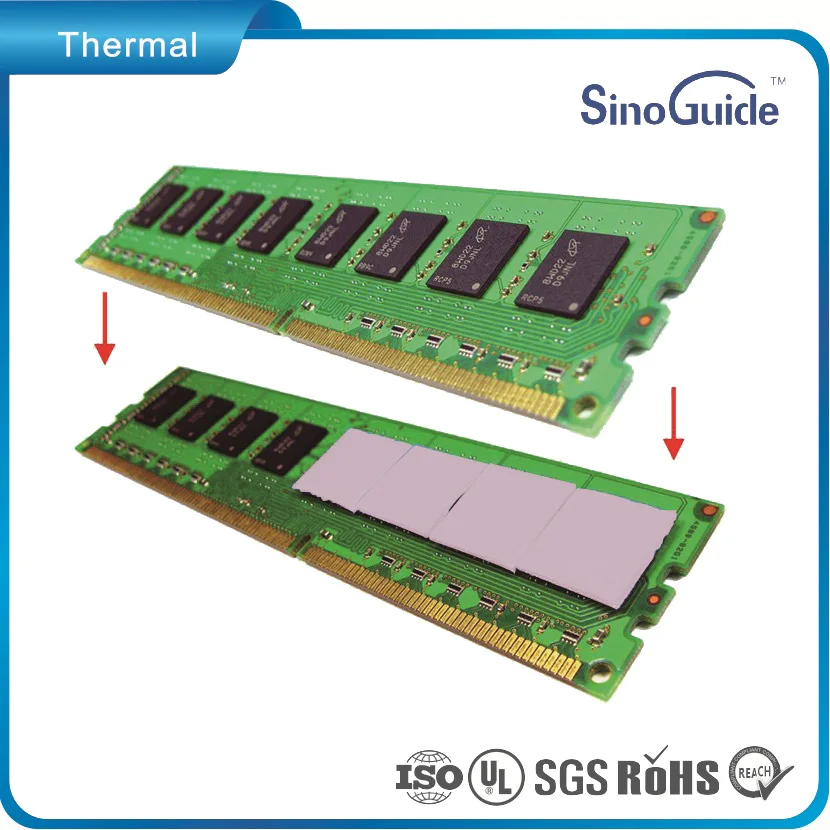

 Memory packages / modules, PC board to chassis
 Cooling Module, Thermal module.
Telecommunication Hardware





                                                               TYPICAL PROPERTIES OF TCP1200
PROPERTYMETRIC VALUETEST METHOD
Color Ash GreyVisual
Thickness (mm)0.5 to 5.0----
Hardness (Shore C)60ASTM D2240
Density (g/cc)3.4ASTM D792
Continuous Use Temp (℃)-40 to 250EN344
ELECTRICAL
Dielectric Breakdown Voltage (Vac)≥280 Vac/milASTM D149
Dielectric Constant (1MHz)7.2ASTM D150
Volume Impedance (ohm-cm)4.2X1010ASTM D257
Flame RatingV 0UL 94
THERMAL
Thermal Conductivity (W/m.k) 12ASTM D5470



Configurations Available:

Sheet size:200 x 400mm, 350x350mm , individual parts available



Part No. Code:





Suffix: Different Options For thermal Pad as below



“A1” suffix: One side additional adhesive such as 3M 467, 3M9448

“A2” suffix: Two sides additional adhesive such as 3M 467, 3M9448

“NA” suffix: Natural tacky

"D" suffix: one side tacky and non-tacky on the other side

"M" suffix: Fiberglass reinforcement in the middle layer

"F" suffix: Fiberglass reinforcement on top or bottom layer





Check List of Reliability Test Report for TCP1200 is available after your request







Below info will be helpful for your right application

How to transfer or dissipate the heat from the heat-generating components to heat sinks?

How To Select the Right Thermal Interface Materials for your new application?

Pls feel free to contact us as Thermal Management Solutions available in SinoGuide.





Product Photos:















Certifications:



Strong Logistics System:





Company Information:







Our Advantage:





FAQ:



1: Can I get free sample?

Yes, SinoGuide is glad to offer free samples if you are a qualified and returning customer, however, if the sample is expensive, like large size , SinoGuide has to charge some basic cost of the sample. For the new customer, samples fee will be deducted from the initial bulk order.



 2:Does SinoGuide accept OEM or Customized production?

Yes, SinoGuide is capable in developing products according to your requirements; quotation will be available within 24 hours after getting all the details of desired products.



  3: How to customized a sample?

If you are ordering a unique sample that SinoGuide doesn't have in stock, you need to supply all the production detail, it will be better if you can provide a sample for our evaluation and testing. A customized sample maybe requires new molding, which will cost molding fee. SinoGuide will examine your sampling requirement, then issue a sampling P/I. Sampling may take 1-2 weeks depends on detailed samples.



 4: How to ship the order?

SinoGuide usually sends packages by air, which is fast. There are many good international couriers for options; DHL, UPS, FedEX, and EMS are the most popular. If a buyer has any DHL, UPS, FedEX account, we can ship the package under your account.For bulk order, SinoGuide usually ship by sea, a sea shipment will require much more Customs and shipping documentation than air shipment.



 5:Is there promotion price for big buyer?

Yes, if you are a big buyer in a certain area, SinoGuide will offer you a promotion price, which will help you to start our business there. Long term cooperation buyer will have better prices.
