Quick Details

  • CNC Machining or Not: Not CNC Machining
  • Type: Etching / Chemical Machining, Other Machining Services, Rapid Prototyping, Turning
  • Material Capabilities: Aluminum, Brass, Bronze, Copper, Precious Metals, Stainless Steel, Steel Alloys
  • Micro Machining or Not: Not Micro Machining
  • Place of Origin: Guangdong, China (Mainland)
  • Model Number: OEM
  • Brand Name: Sinoguide

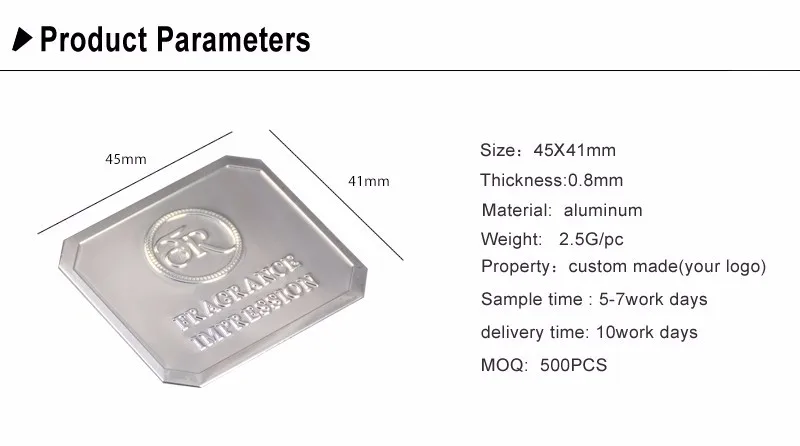

  • Name: Custom Design Etching Stainless Steel Name Plate
  • Thickness: 0.03mm-1.5mm
  • Tolerance: +/-0.01mm
  • Size: 1*1mm - 300*500mm
  • Smallest Open Hole: 0.1mm
  • 0.1mm: +/-0.025mm
  • Edge: Burr free
  • Artwork: Ai/Coreldraw/PDF etc
  • MOQ: 1000PCS
  • Supply Ability: 100000pcs/day

Packaging & Delivery

Packaging Details SinoGuide Packing or Customized
Delivery Time 3~5 working days
Product Description

 Name Plate Photo Etch Parts, Chemical etching

Unlike stamping, photoetching yields a burr-free product resulting in cleaner more efficient screens with greater material integrity. These superior quality screens feature tighter tolerance hole sizes and greater dimensional stability than woven wire mesh, which makes them ideal in applications requiring frequent cleaning or in devices where there is mechanical contact.

Applications:

Thin Metal Parts’ chemical etching is an excellent choice for a wide range of designs and applications, offering tight tolerances, a long list of available materials & thicknesses, quick lead times, and competitive pricing. Through continuous innovation, SinoGuide has elevated this tried-and-true process to new levels of capability.





TypeName Plate
NameStainless steel, copper, silicon steel plate,or customize
Thickness0.03 mm - 3.0 mm
Size1000*2000mm, 1219*2438mm, 1219*3048mm, customized Max.width 1500mm
TechniqueHigh precision etching
Hole0.01mm(customize)
Avaible finishesNo.4, Hairline, Mirror, Etching, PVD Color, Embossed, Vibration, Sandblast, Combination, lamination etc.
Spacing0.018mm(customize)
Hole shapePVC+ waterproof paper + strong sea-worthy wooden package



Chemical composition
GradeSTS304STS 316STS430STS201
Elong(10%)Above 4030MINAbove 2250-60
Hardness≤200HV≤200HVBelow 200HRB100,HV 230
Cr(%)18-2016-1816-1816-18
Ni(%)8-1010-14≤0.60%0.5-1.5
C(%)≤0.08≤0.07≤0.12%≤0.15







 Advantages of Photo Etching:

•Low tooling cost, no need for expensive DIE/Mould
•Can fabricate more thinner metals(T=0.02-1.2 mm)
•No alteration process, the characteristics can be obtained as the designer intended
•High accuracy
•Various apertures, shapes and bar combinations
•Burr & Stress free manufacturing method
•Prototypes – fast turnaround to meet your needs
•High volume capabilities


SinoGuide provides high quality and performance photo etching components for customers, further more, our high production capacity can also fulfill your high-volume orders and shorten the lead time.

SinoGuide is also a one-stop solution provider, we can also provide you value added service such plating, polishing, stamping, PVD coating etc.





Below info will be helpful for your etching project



High Precision Photochemical Etching Design Guide



High Precision Photochemical Etching EDGE BEVEL Design Guide



High Precision Photo chemical Etching Thru Hole Design Guide



Etching Stainless Steel Check List

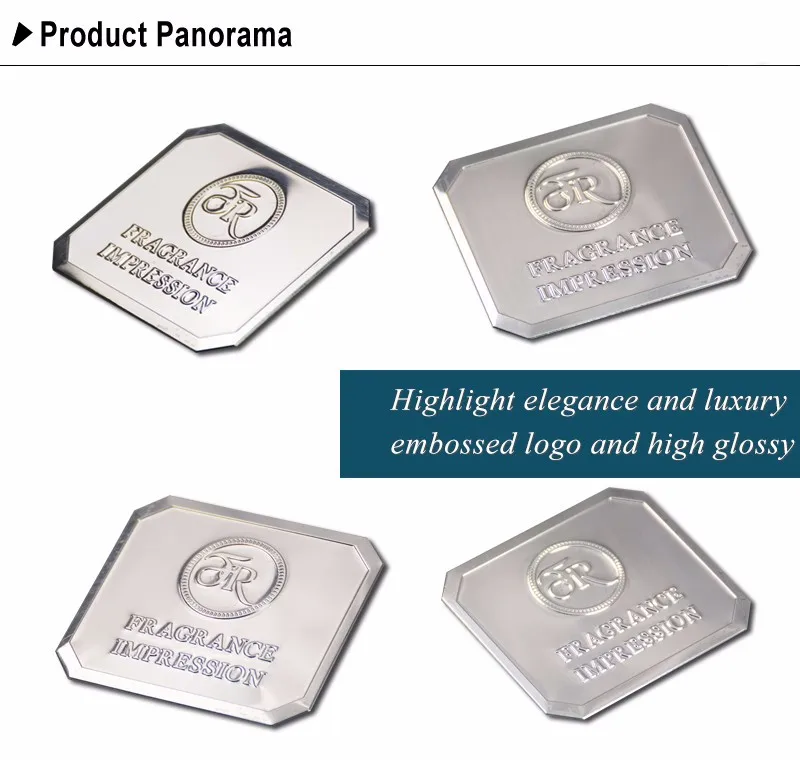

Other Product Photos:









Packaging & Shipping



 Strong Logistics System:



Company Information

Our Advantage:

For quotation for total cost of the etching please email, fax or post us a sketch of your proposed etchings giving quantities, sizes, material, thickness and any other information that is relevant.
