Custom OEM Chemical Etching Speaker Grill Etching Mesh

FOB Reference Price:Get Latest Price
  • 100 - 999 Pieces
    $4.80
  • 1000 - 9999 Pieces
    $4.60
  • 10000 - 19999 Pieces
    $4.20
  • >=20000 Pieces
    $3.80
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
SinoGuide
Model Number:
Customized
Type:
Perforated Mesh
Material:
Stainless Steel Wire
Application:
Filters
Technique:
Perforated
Weave Style:
perforated
Name:
Acid Etching Stainless Steel Filter Etching Mesh
Thickness:
0.03mm-1.5mm
Tolerance:
+/-0.01mm
Size::
1*1mm2 - 300*500mm2
Smallest Open Hole:
0.1mm
Edge:
Burr free
Artwork::
Ai/Coreldraw/PDF etc
MOQ::
1000PCS
Supply Ability:
100000pcs/week
Hole shape:
Round, Square, or as you want
Wire Diameter:
Requirement
Supply Ability
Supply Ability:
30000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
SinoGuide Packing or Customized
outside with woven cloth inside with plastic then outside with hessian cloth
Port
Shenzhen
Lead Time :
3~6 working days

mesh etching banner

0.1mm Thickness Chemical Etching Meshes, Screens, Grids and Filters

Photochemical etching is an ideal process for perforated metal products, such as: grids, screens, meshes, filters, separators, microfilters, grilles, lighting diffusers and more. SinoGuide manufactures bespoke, high performance single piece metal meshes for a myriad of uses, including filters, sieves, grilles and screens. In addition to conventional flat metal meshes, SinoGuide can also manufacture precision column filters by laminating pre-machined metal shims to the required height.



Product Description

SinoGuide ’s chemical etching technology, a subtractive process that can produce a series of complex designs, mesh patterns and logos simultaneously, in a single machining operation, boasts burr-free features to micron tolerances as well as high definition surface engraving.



The features of Etched speaker grill mesh


1. Etched speaker grill mesh has high precision of etching technical, Superior rigidity for better protection, Higher durability for longevity, The ability to incorporate legends and logos, with tight tolerances.


2. Etched speaker grill mesh is high corrosion resistant, high wear resistance and clean.



Product Description

Product name:

0.1mm Thickness Chemical Etching Speaker Grill Mesh

Material:

Stainless steel, copper, silicon steel plate,or customize

Size:

According to customers

Thickness:

0.03-1.5mm is available

Technique:

High precision etching

Hole:

0.01mm(customize)

Spacing

0.018mm(customize)

Hole shape:

Round, Square, or as you want

Surface finish:

Clean, burr free

Features:

No burrs,No broken point,no plugging holes

Application:

Speaker, Mobile phone, MP3/MP4/MP5 Player, Tablet PC, or other Mobile electronic devices metal speaker mesh grill

Certificate:

RoHS, ISO

Inspection:

Two-dimension inspection machine,magnifier

Other Related Items

Price:

According to product specification

Sample Offer:

Within 3-6 days

Payment:

T/T, L/C, Paypal, Western Union

Lead time for mass production:

Within 6-10 days after payment

Production ability:

100000pcs/week

Metal process methods available:

Stamping, Chemical etching, Laser cutting

Acceptable file format:

DWG, DXF, IGES, PDF, JEPG

Standard met:

Customer specification, 2D CAD drawing





Thin metal mesh parts’ chemical etching is an excellent choice for a wide range of designs and applications, offering tight tolerances, a long list of available materials & thicknesses, quick lead times, and competitive pricing. Through continuous innovation, SinoGuide has elevated this tried-and-true process to new levels of capability.



Our Services

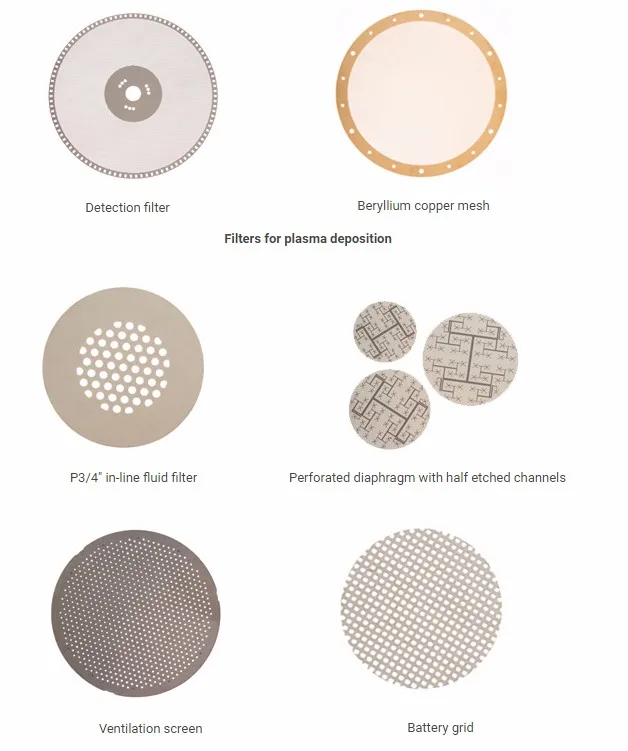

Mesh Screens: Micro Mesh Manufactured From SinoGuide



Industrial, Commercial, and Scientific Applications for Perforated Metal




speaker-grill-vector

SinoGuide provides high quality and performance photo etching components for customers, further more, our high production capacity can also fulfill your high-volume orders and shorten the lead time.

SinoGuide is also a one-stop solution provider, we can also provide you value added service such plating, polishing, stamping, PVD coating etc.








 Advantages of Photo Etching:

Low tooling cost, no need for expensive DIE/Mould
•Can fabricate more thinner metals(T=0.02-1.2 mm)
•No alteration process, the characteristics can be obtained as the designer intended
•High accuracy
•Various apertures, shapes and bar combinations
•Burr & Stress free manufacturing method
•Prototypes – fast turnaround to meet your needs
•High volume capabilities


Below info will be helpful for your etching project



High Precision Photochemical Etching Design Guide

High Precision Photochemical Etching EDGE BEVEL Design Guide

High Precision Photo chemical Etching Thru Hole Design Guide

Etching Stainless Steel Check List





Product Photos-Different Shape Shim
