2017 New Chemical Etching Filter Mesh

FOB Reference Price:Get Latest Price
  • 100 - 999 Pieces
    US $4.70
  • 1000 - 9999 Pieces
    US $4.50
  • >=10000 Pieces
    US $4.20
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Material:
Stainless Steel Wire
Type:
Perforated Mesh
Application:
Filters
Weave Style:
Plain Weave
Wire Diameter:
OEM Supported
Technique:
Perforated
Model Number:
SG
Brand Name:
Sinoguide
Name:
Photo Etching Stainless Steel Filter Etching Mesh
Thickness:
0.03mm-1.5mm
Tolerance:
+/-0.01mm
Size::
1*1mm2 - 300*500mm2
Smallest Open Hole:
0.1mm
Edge:
Burr free
Artwork::
Ai/Coreldraw/PDF etc
MOQ::
1000PCS
Supply Ability:
100000pcs/day
Supply Ability
Supply Ability:
30000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
SinoGuide Packing or Customized
Port
Shenzhen
Lead Time :
3~4 working days

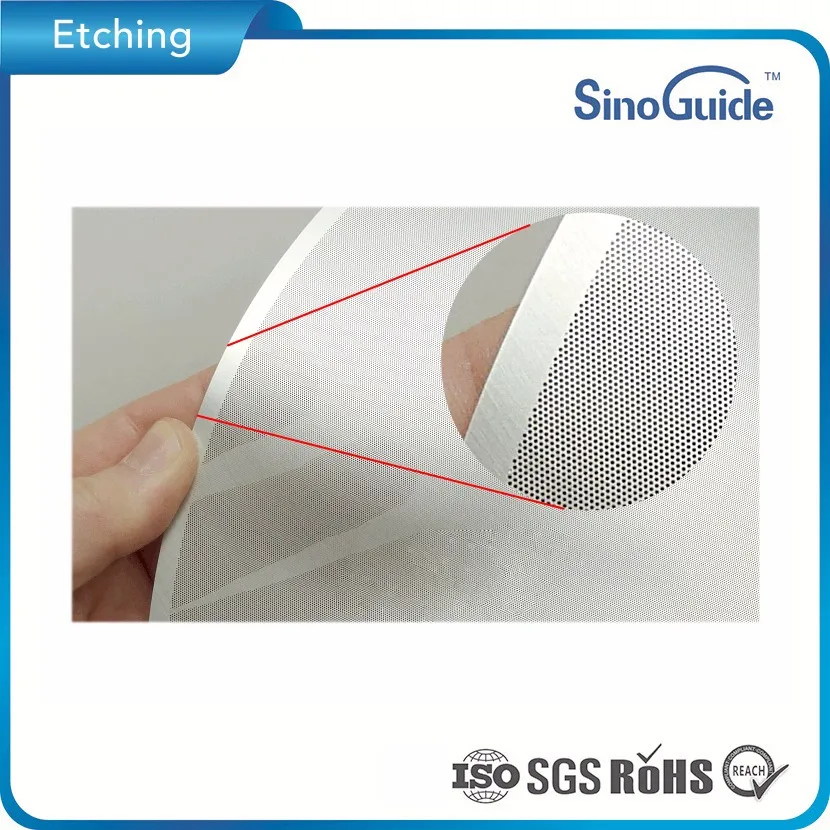

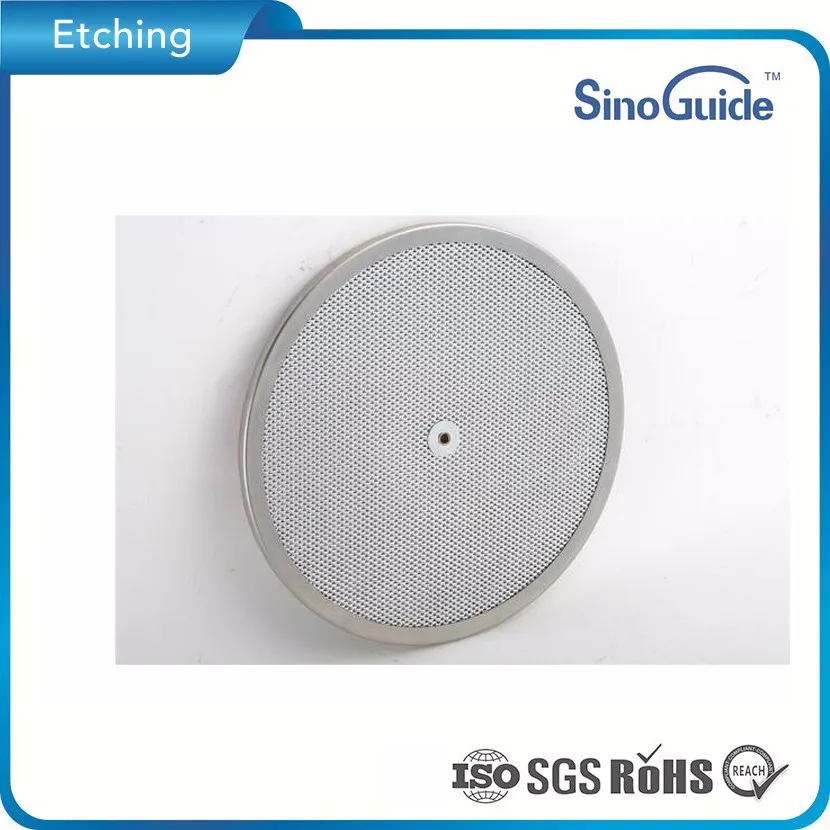

0.1mm Thickness Chemical Etching Speaker Grill Mesh

Manufactures by photo etching or chemical milling precision light gauge parts from titanium, tungsten and other specialty materials, high relibility flex and rigid circuits and a complete line of standard and custom EMI/RFI shielding products for both the commercial and military markets.





Our Services

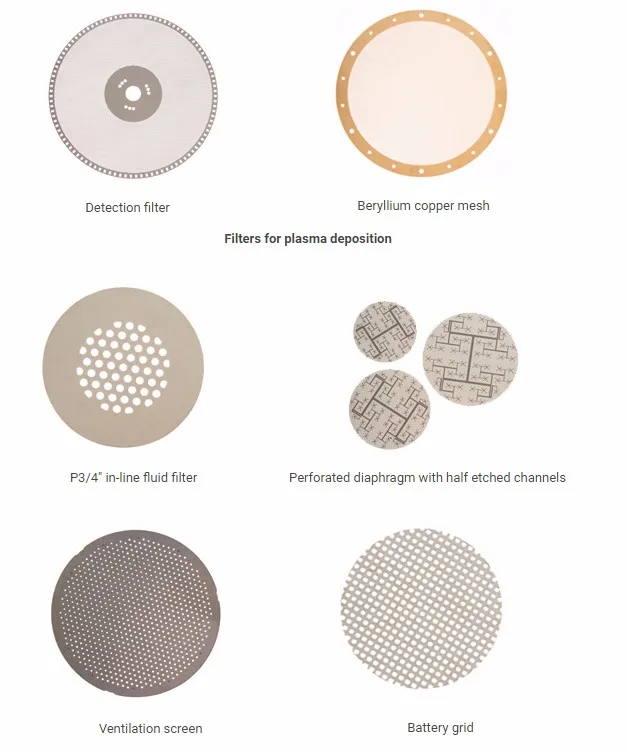

SinoGuide manufactures bespoke, high performance single piece metal meshes for a myriad of uses, including filters, sieves, grilles and screens. In addition to conventional flat metal meshes, SinoGuide can also manufacture precision column filters by laminating pre-machined metal shims to the required height.





Industrial, Commercial, and Scientific Applications for Perforated Metal




Applications:



Thin Metal Parts’ chemical etching is an excellent choice for a wide range of designs and applications, offering tight tolerances, a long list of available materials & thicknesses, quick lead times, and competitive pricing. Through continuous innovation, SinoGuide has elevated this tried-and-true process to new levels of capability.





Product Description

Product name:

0.1mm Thickness Chemical Etching Speaker Grill Mesh

Material:

Stainless steel, copper, silicon steel plate,or customize

Size:

According to customers

Thickness:

0.03-1.5mm is available

Technique:

High precision etching

Hole:

0.01mm(customize)

Spacing

0.018mm(customize)

Hole shape:

Round/ Square

Surface finish:

Clean .no burr

Features:

No burrs,No broken point,no plugging holes

Application:

Fiber filter,Textile machines or customize

Certificate:

RoHS,ISO

Inspection:

Two-dimension inspection machine,magnifier

Other Related Items

Price:

According to product specification

Sample Offer:

Within 3-6 days

Payment:

T/T,L/C,Paypal,Western Union

Lead time for mass production:

Within 6-10 days after payment

Production ability:

10000pcs/week

Metal process methods available:

Stamping,Chemical etching,Laser cutting

Acceptable file format:

DWG,DXF,IGES,PDF,JEPG

Standard met:

Customer specification,2D CAD drawing









 Advantages of Photo Etching:

•Low tooling cost, no need for expensive DIE/Mould
•Can fabricate more thinner metals(T=0.02-1.2 mm)
•No alteration process, the characteristics can be obtained as the designer intended
•High accuracy
•Various apertures, shapes and bar combinations
•Burr & Stress free manufacturing method
•Prototypes – fast turnaround to meet your needs
•High volume capabilities


SinoGuide provides high quality and performance photo etching components for customers, further more, our high production capacity can also fulfill your high-volume orders and shorten the lead time.

SinoGuide is also a one-stop solution provider, we can also provide you value added service such plating, polishing, stamping, PVD coating etc.





Below info will be helpful for your etching project



High Precision Photochemical Etching Design Guide



High Precision Photochemical Etching EDGE BEVEL Design Guide



High Precision Photo chemical Etching Thru Hole Design Guide



Etching Stainless Steel Check List





Product Photos-Different Shape Shim
