Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SinoGuide
  • Model Number: TCP110U
  • Type: Insulation Sheet
  • Material: Fiberglass
  • Application: High Voltage
  • Rated Voltage: 6Kv/ac
  • Tensile Strength: 2.2 KN/M
  • Thermal Conductivity: 1.1 W/m.k
  • Thermal Resistance: Ultra Low depends on pressure and thickness
  • Hardness: 5 or 15 Shore C
  • Max pressure ratio: 50%
  • Color: Pink/White
  • Thickness: 0.5~15mm
  • Density: 2.2g/cc
  • Flame Rating: UL 94 V 0
  • Size: Customized
  • Carrier: Fiberglass reinforcement

Packaging & Delivery

Packaging Details SinoGuide Standard Package or Customized
Delivery Time 3 -5 working days



                      Equivalent of Bergquist Thermal Conductive Gap Filler Pad





Main Features:



Thermal conductivity:1.10 W/mk
Fiberglass Reinforcement
Naturally tacky on one side for easy assembly
Electrically insulating
Resist to puncture,shear and tear





Typical Applications:



Power Conversion/Supply
Ballast For Led Lighting,
Wireless Hub,Telecom device.
Cooling Module, Thermal module.
Telecommunication Hardware
Auto Engine, Electric Vehicle Battery



TYPICAL PROPERTIES OF TCP100 Thermal Pad
PROPERTYMETRIC VALUETEST METHOD
ColorGrayVisual
Thickness (mm)0.25~15----
Hardness (Shore C)25 or 35ASTM D2240
Density (g/cc)1.8ASTM D792
Tensile Strength (KN/m)2.2ASTM D412
Continuous Use Temp ()-40 to 200EN344
ELECTRICAL
Breakdown Voltage (Kv/mm)6.0ASTM D149
Dielectric Constant (1MHz)4.5ASTM D150
Volume Impedance (ohm-cm)1.5 x1016ASTM D257
Flame RatingV 0UL 94
THERMAL
Thermal Conductivity (W/m.k)1.0ASTM D5470



Configurations Available:

Standard Sheet and Roll Sizes:

Sheet size: 200mmx400mm,300mm x 300mm,individual parts available. Roll Form available(300mm width)

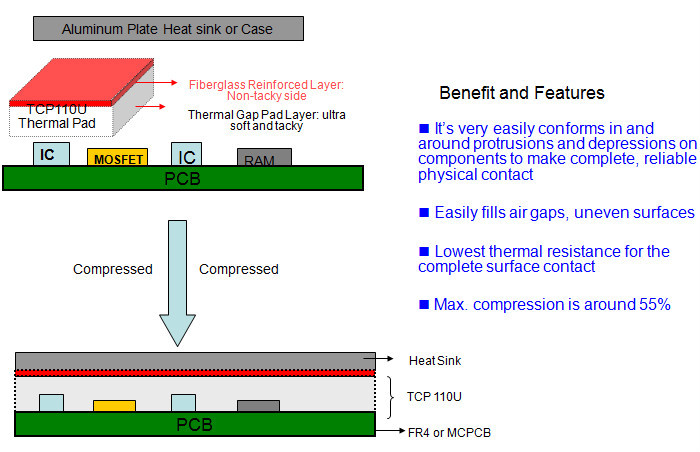

TCP110U Application Guide



 Part No.Code:





Suffix: Different Options For thermal Pad as below

“A1” suffix: One side additional adhesive such as 3M 467, 3M9448

“NA” suffix: Natural tacky



Check List of Reliability Test Report for TCP110U is available after your request









Below info will be helpful for your right application

How to transfer or dissipate the heat from the heat-generating components to heat sinks?

How To Select the Right Thermal Interface Materials for your new application?

Pls feel free to contact us as Thermal Management Solutions available in SinoGuide.

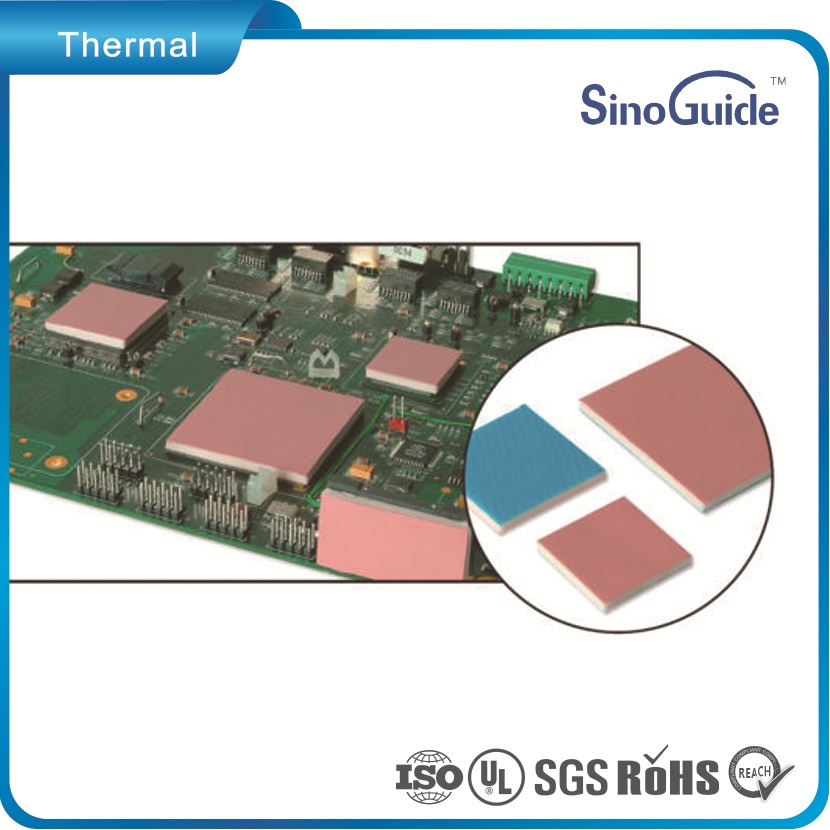

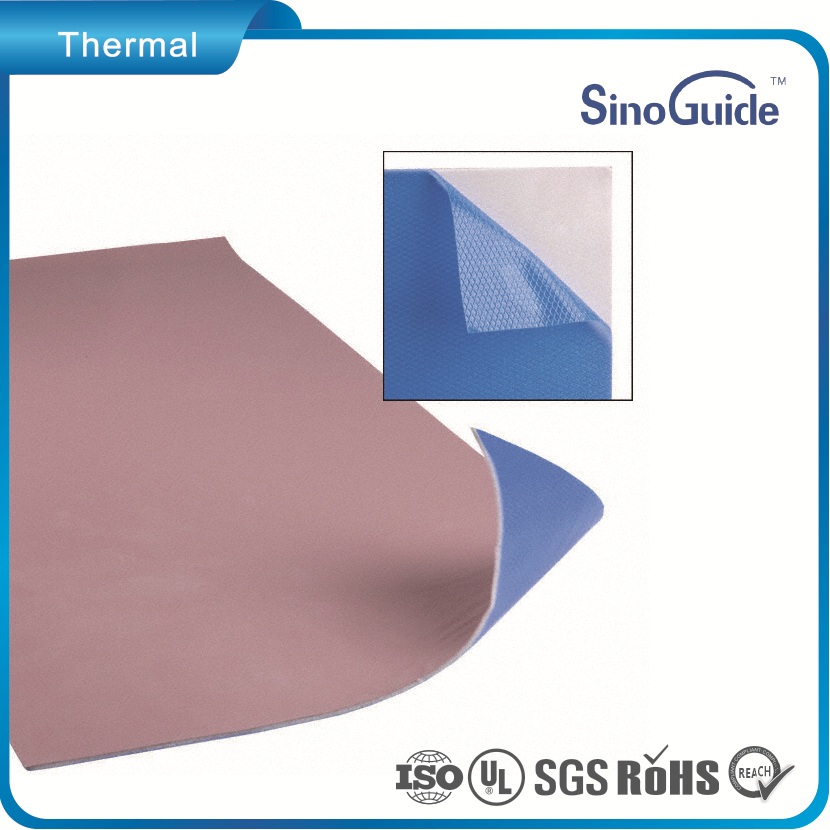

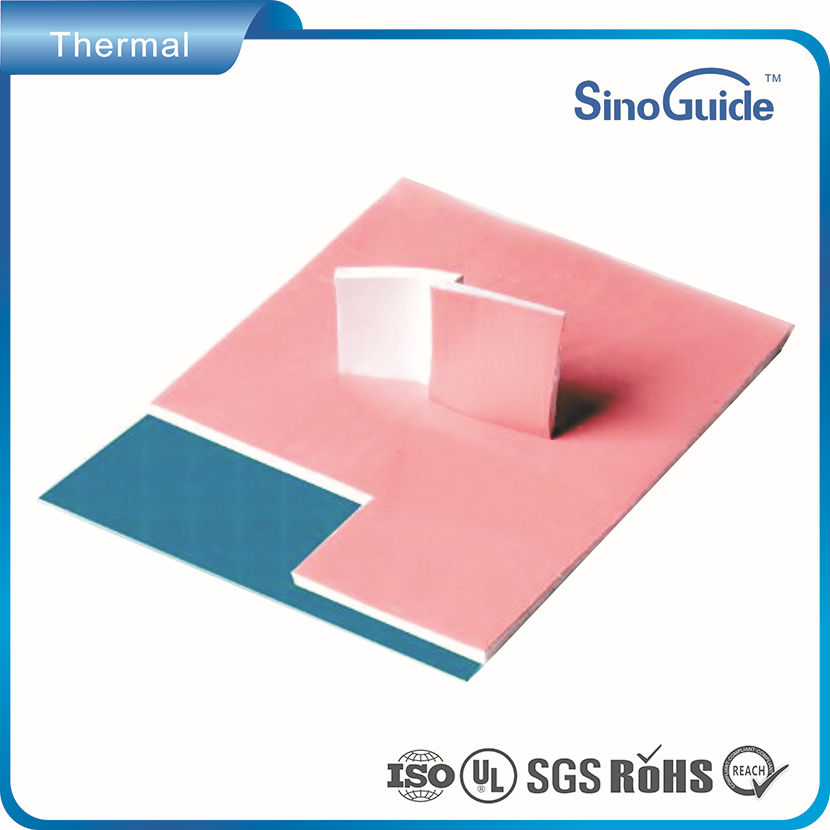

Product Photos:













Certification:





Strong Logistics System:





Company Information:







Our Advantage:





FAQ:





1: Can I get free sample?

Yes, SinoGuide is glad to offer free samples if you are a qualified and returning customer, however, if the sample is expensive, like large size , SinoGuide has to charge some basic cost of the sample. For the new customer, samples fee will be deducted from the initial bulk order.



2:Does SinoGuide accept OEM or Customized production?

Yes, SinoGuide is capable in developing products according to your requirements; quotation will be available within 24 hours after getting all the details of desired products.



3: How to customized a sample?

If you are ordering a unique sample that SinoGuide doesn't have in stock, you need to supply all the production detail, it will be better if you can provide a sample for our evaluation and testing. A customized sample maybe requires new molding, which will cost molding fee. SinoGuide will examine your sampling requirement, then issue a sampling P/I. Sampling may take 1-2 weeks depends on detailed samples.



4: How to ship the order?

SinoGuide usually sends packages by air, which is fast. There are many good international couriers for options; DHL, UPS, FedEX, and EMS are the most popular. If a buyer has any DHL, UPS, FedEX account, we can ship the package under your account.For bulk order, SinoGuide usually ship by sea, a sea shipment will require much more Customs and shipping documentation than air shipment.



5:Is there promotion price for big buyer?

Yes, if you are a big buyer in a certain area, SinoGuide will offer you a promotion price, which will help you to start our business there. Long term cooperation buyer will have better prices.
