1.5W/m.k Cooling thermal conductive heat sink silicone soft gap pad

FOB Reference Price:Get Latest Price
US $0.2-10 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SinoGuide
Model Number:
TCP150
Type:
Siliocone base, Fiberglass, Polyimide
Material:
Composite Polymer
Application:
High Voltage
Rated Voltage:
6Kv/ac
Tensile Strength:
2.2 KN/M
Thermal Conductivity:
1.5W/m.k
Hardness:
15, 25 or 35 Shore C
Color:
Dark Gray
Thickness:
0.25mm~15mm
Size:
Customized
Breakdown Voltage:
≥5.0Kv/mm
Continuous Use Temp:
-40 to 200℃
Density:
2.1g/cc
Flame Rating:
UL 94 V 0
Usage:
LED,CPU,Laptop,Electronics etc
SupplyAbility
SupplyAbility:
20000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
SinoGuide Standard Package or Customized
Port
Shenzhen, Shanghai, HongKong
Lead Time :
3 ~5 working days



                       Silicone Thermal Conductive Gap Filler Pad TCP150 Series





 Features:



1.50 W/mk  thermal conductivity

 Low Hardness and Cost effective

 Natural tacky

 Electrically insulating

 Easy assembly and Application



 Applications:



 Set-Top Box,Power Modules/Supply

 Led Lighting, LCD TV, Telecom device

 Network Router/Adapter

 Cooling Module, Thermal module

 Vehicle-intelligence Terminal



TYPICAL PROPERTIES OF TCP150
PROPERTYMETRIC VALUETEST METHOD
ColorDark GrayVisual
Thickness (mm)0.25~15----
Hardness (Shore C)15, 25,35ASTM D2240
Density (g/cc)2.1ASTM D792
Tensile Strength (KN/m)0.5ASTM D412
Continuous Use Temp ()-40 to 200EN344
ELECTRICAL
Breakdown Voltage (Kv/mm)5.0ASTM D149
Dielectric Constant (1MHz)5ASTM D150
Volume Impedance (ohm-cm)8.0 x1015ASTM D257
Flame RatingV 0UL 94
THERMAL
Thermal Conductivity (W/m.k)1.5ASTM D5470



Configurations Available:

Standard Sheet Sizes:

Sheet size:200 x 400mm,300x300mm,350x350mm , individual parts available

Roll Form available(300mm width)



Part No. Code:



9





Suffix: Different Options For thermal Pad as below



"A1" suffix: One side additional adhesive such as 3M 467, 3M9448

"A2" suffix: Two sides additional adhesive such as 3M 467, 3M9448

"NA" suffix: Natural tacky

"D" suffix: one side tacky and non-tacky on the other side

"M" suffix: Fiberglass reinforcement in the middle layer

"F" suffix: Fiberglass reinforcement on top or bottom layer



Check List of Reliability Test Report for TCP150 is available after your request



 10101



Below info will be helpful for your right application

How to transfer or dissipate the heat from the heat-generating components to heat sinks?

How To Select the Right Thermal Interface Materials for your new application?

Pls feel free to contact us as Thermal Management Solutions available in SinoGuide.

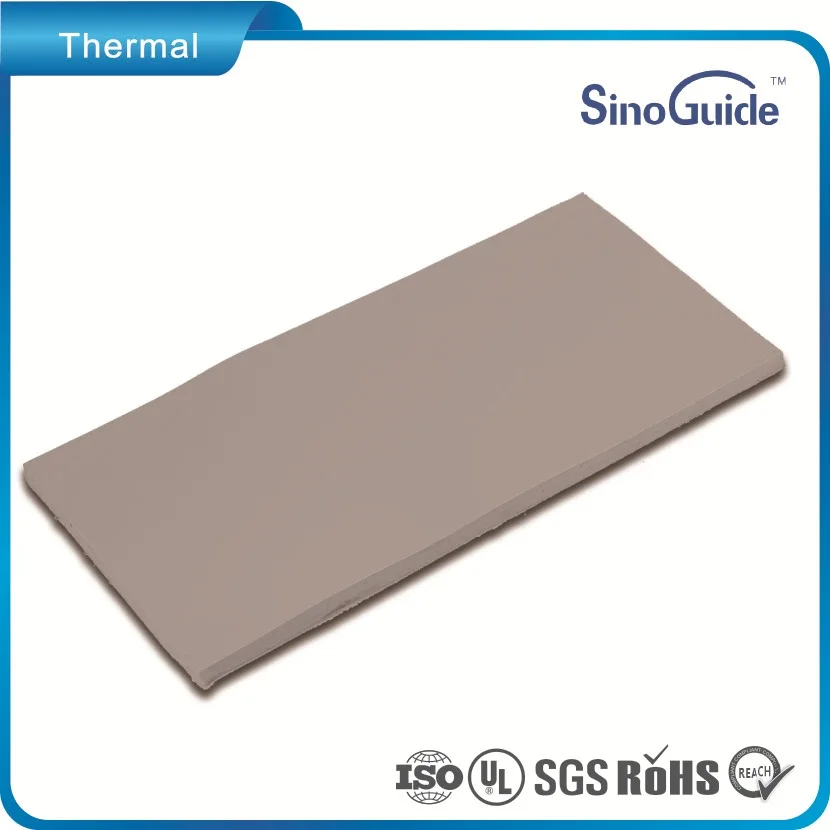

Product Photos:



thermal conductive pad



thermal conductive pad



thermal gap pad





Certification:



Certification

Strong Logistics System:



-new



Company Information:



000222111





Our Advantage:



04



FAQ:



1: Can I get free sample?
Yes, SinoGuide is glad to offer free samples if you are a qualified and returning customer, however, if the sample is expensive, like large size , SinoGuide has to charge some basic cost of the sample. For the new customer, samples fee will be deducted from the initial bulk order.



2:Does SinoGuide accept OEM or Customized production?
Yes, SinoGuide is capable in developing products according to your requirements; quotation will be available within 24 hours after getting all the details of desired products.



3: How to customized a sample?
If you are ordering a unique sample that SinoGuide doesn't have in stock, you need to supply all the production detail, it will be better if you can provide a sample for our evaluation and testing. A customized sample maybe requires new molding, which will cost molding fee. SinoGuide will examine your sampling requirement, then issue a sampling P/I. Sampling may take 1-2 weeks depends on detailed samples.



4: How to ship the order?
SinoGuide usually sends packages by air, which is fast. There are many good international couriers for options; DHL, UPS, FedEX, and EMS are the most popular. If a buyer has any DHL, UPS, FedEX account, we can ship the package under your account.For bulk order, SinoGuide usually ship by sea, a sea shipment will require much more Customs and shipping documentation than air shipment.



5:Is there promotion price for big buyer?
Yes, if you are a big buyer in a certain area, SinoGuide will offer you a promotion price, which will help you to start our business there. Long term cooperation buyer will have better prices.
