7.5W/m.K Thermal Conductive Gap Pads With Lowest Thermal Impedance

FOB Reference Price:Get Latest Price
$0.10 - $10.00 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Model Number:
Thermal Conductive Pad
Composite Polymer
High Voltage
Rated Voltage:
Tensile Strength:
2.2 KN/M
Thermal Conductivity:
50 Shore C
1.0 ~15.0 mm
Continuous Use Temp:
-60 to 200 ℃
Flame Rating:
UL 94 V 0
LED,CPU,Laptop,Electronics etc
Dielectric Breakdown Voltage:
≥200 Vac/mil
Supply Ability
Supply Ability:
20000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
SinoGuide Standard Package or Customized
Shenzhen, HongKong
Lead Time :
3 -5 working days

                           Silicone Thermal Conductive Gap Filler Pad TCP750 Series



  • 7.50 W/mk High Thermal Conductivity
  • Low Thermal Resistance at Low Pressure
  • Naturally tacky for easy application



  • Between heat-generation component and heatsink.
  • Automotive engine control, Graphices Cards, Telecom device.
  • Wireless Hub,Military equipment, power supply.
  • Cooling Module, Thermal module.
  • Telecommunication Hardware



                                     TYPICAL PROPERTIES OF TCP750
Color OrangeVisual
Thickness (mm)1.0 to 15.0----
Hardness (Shore C)50ASTM D2240
Density (g/cc)3.9ASTM D792
Continuous Use Temp (℃)-60 to 200EN344
Dielectric Breakdown Voltage (Vac)≥200 Vac/milASTM D149
Dielectric Constant (1MHz)6.8ASTM D150
Volume Impedance (ohm-cm)6.5X1010ASTM D257
Flame RatingV 0UL 94
Thermal Conductivity (W/m.k) 7.5ASTM D5470


Configurations Available:


Sheet size:200 x 400mm, 350x350mm , individual parts available


Part No. Code:



Suffix: Different Options For thermal Pad as below


“A1” suffix: One side additional adhesive such as 3M 467, 3M9448

“A2” suffix: Two sides additional adhesive such as 3M 467, 3M9448

“NA” suffix: Natural tacky

"D" suffix: one side tacky and non-tacky on the other side

"M" suffix: Fiberglass reinforcement in the middle layer

"F" suffix: Fiberglass reinforcement on top or bottom layer



Check List of Reliability Test Report for TCP600 is available after your request




Below info will be helpful for your right application

How to transfer or dissipate the heat from the heat-generating components to heat sinks?

How To Select the Right Thermal Interface Materials for your new application?

Pls feel free to contact us as Thermal Management Solutions available in SinoGuide.

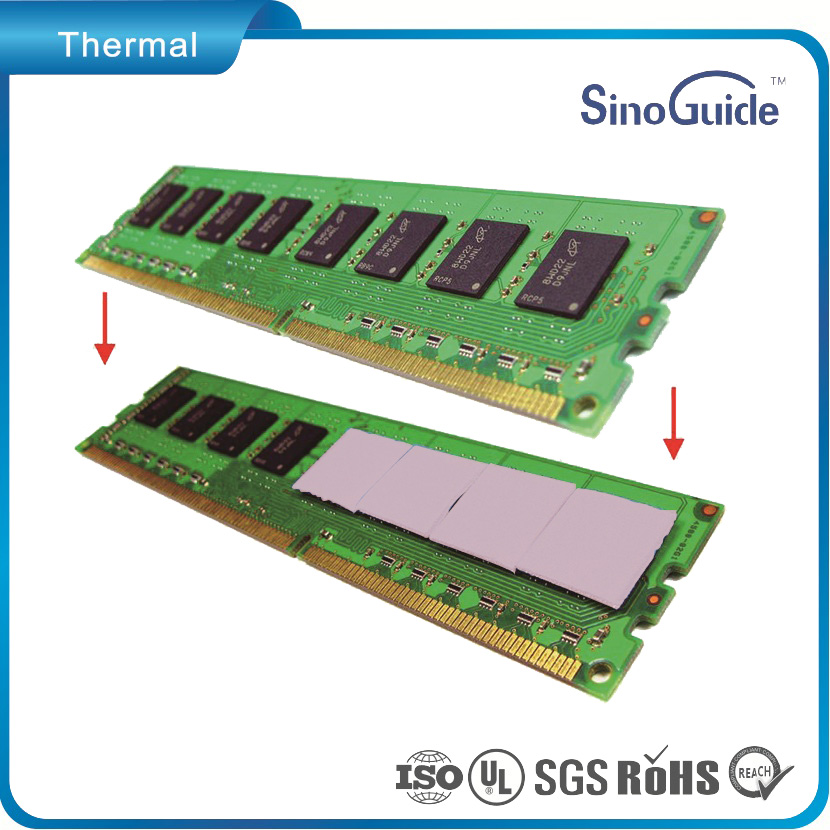

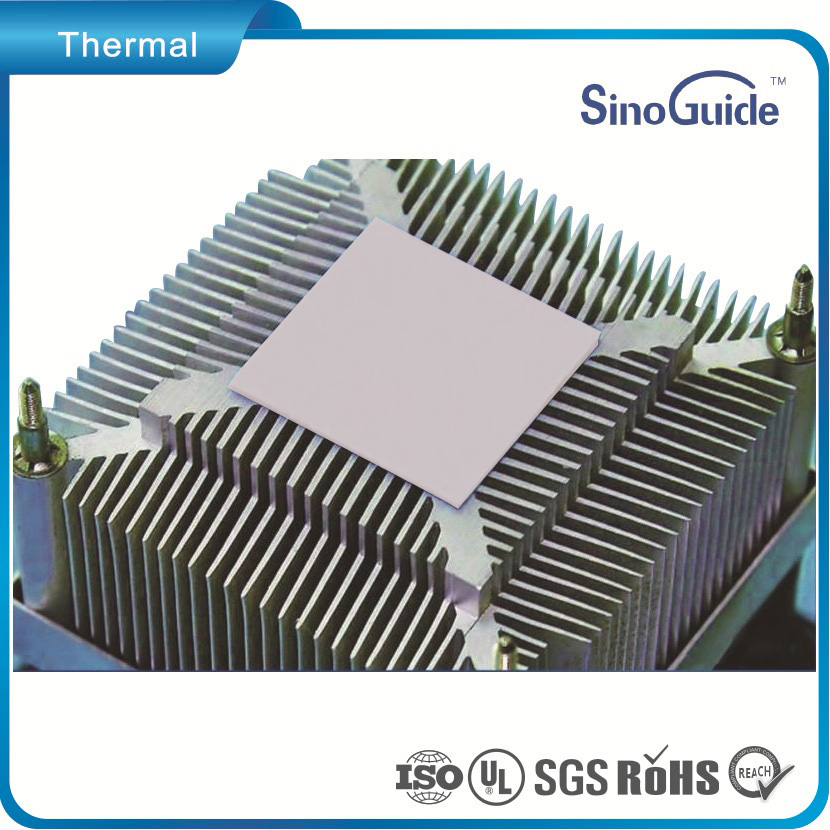

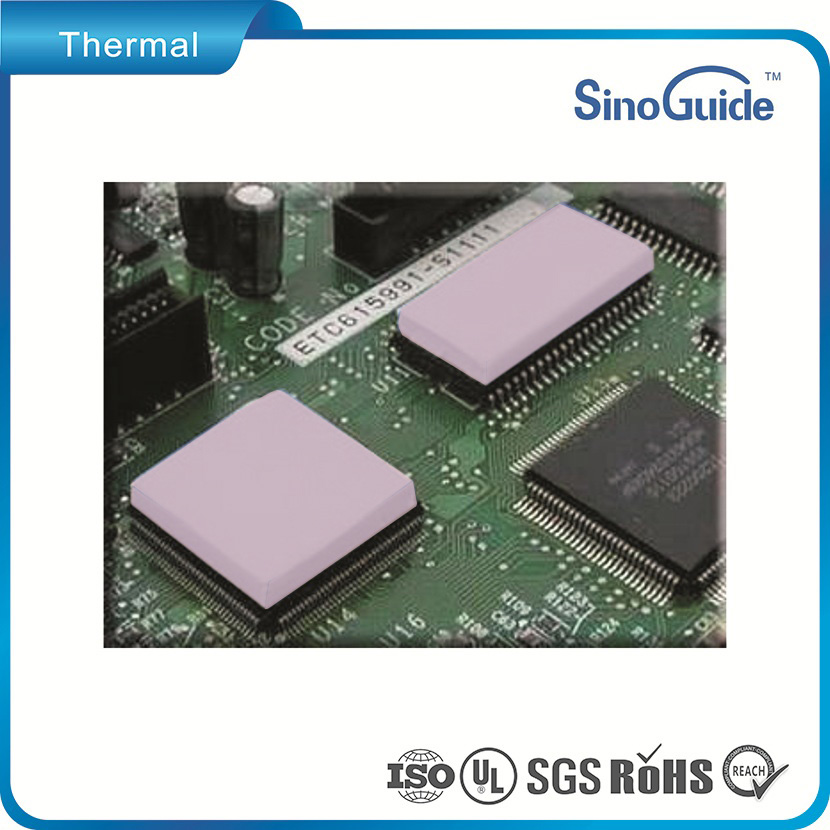

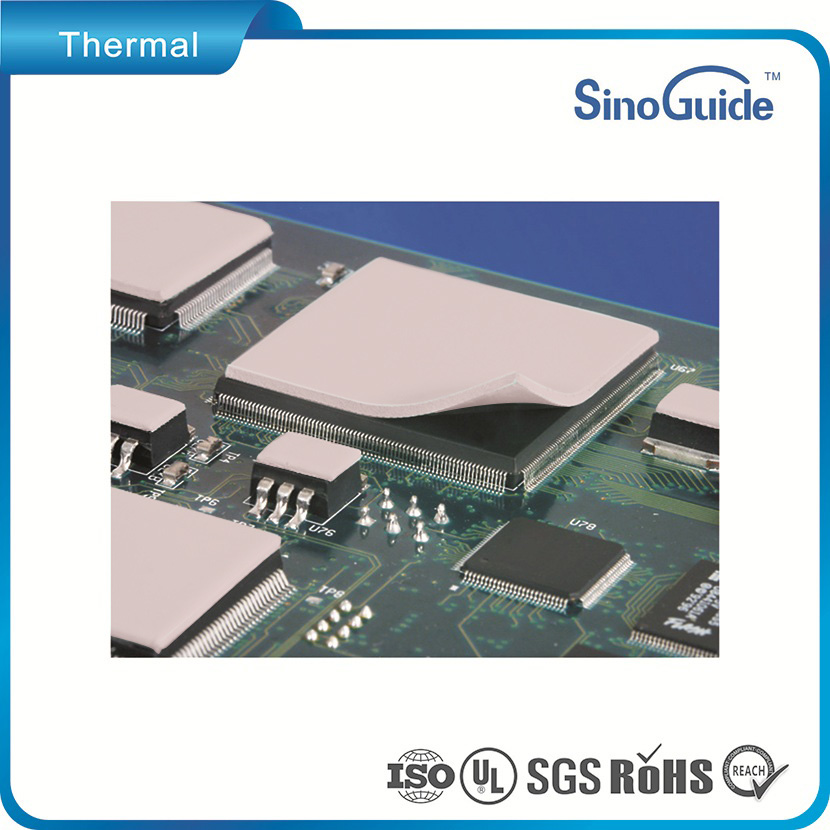

Product Photos:










Strong Logistics System:



Company Information:




Our Advantage:





1: Can I get free sample?

Yes, SinoGuide is glad to offer free samples if you are a qualified and returning customer, however, if the sample is expensive, like large size , SinoGuide has to charge some basic cost of the sample. For the new customer, samples fee will be deducted from the initial bulk order.


 2:Does SinoGuide accept OEM or Customized production?

Yes, SinoGuide is capable in developing products according to your requirements; quotation will be available within 24 hours after getting all the details of desired products.


  3: How to customized a sample?

If you are ordering a unique sample that SinoGuide doesn't have in stock, you need to supply all the production detail, it will be better if you can provide a sample for our evaluation and testing. A customized sample maybe requires new molding, which will cost molding fee. SinoGuide will examine your sampling requirement, then issue a sampling P/I. Sampling may take 1-2 weeks depends on detailed samples.


 4: How to ship the order?

SinoGuide usually sends packages by air, which is fast. There are many good international couriers for options; DHL, UPS, FedEX, and EMS are the most popular. If a buyer has any DHL, UPS, FedEX account, we can ship the package under your account.For bulk order, SinoGuide usually ship by sea, a sea shipment will require much more Customs and shipping documentation than air shipment.


 5:Is there promotion price for big buyer?

Yes, if you are a big buyer in a certain area, SinoGuide will offer you a promotion price, which will help you to start our business there. Long term cooperation buyer will have better prices.
